2.0.0 Overview

Version 2.0.0 is a refactor of the original Pose Wrangler. The goal of this version has been to separate the UI logic from the backend, enabling users to automate RBF setup via Python and create custom extensions to add new functionality.

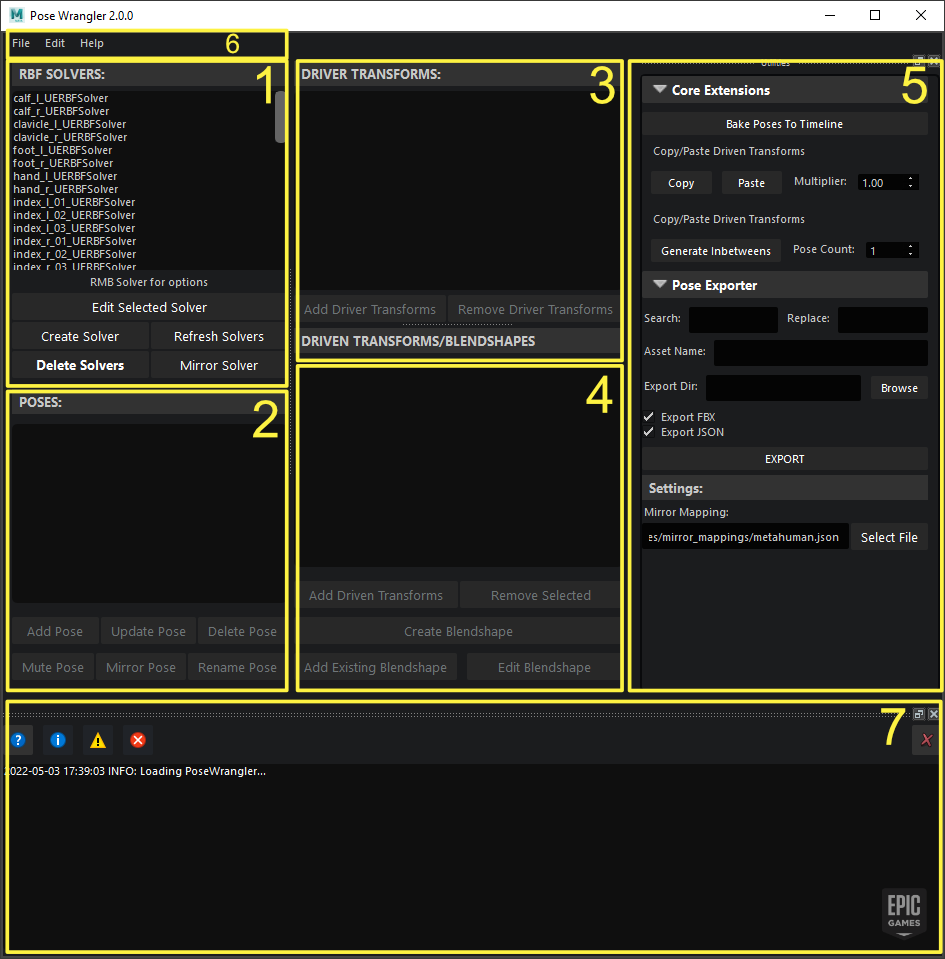

UI Overview

1) Solver View

Here is where you can find a list of all the RBF solvers currently available in the scene and can edit, create, delete or mirror solvers.

In order to make changes to the poses, drivers or driven transforms/blendshapes you need to toggle a solver into edit mode via the Edit Selected Solver button.

Note

Only one solver can be edited at a single time.

2) Pose View

Here you can find a list of all the poses. In order to make any changes to the poses, you need to edit the corresponding solver.

Warning

Most of these are self-explanatory, but is it worth noting that Mute Pose will enable and disable the pose on the solver via the targetEnable attribute. This means that if the RBF solver node is set to use automatic radius then the radius will be calculated without the influence of the muted poses.

3) Driver View

2.0.0 supports multiple drivers. Here you can add/remove driver transforms.

4) Driven Transforms / Blendshape View

Here you can add/remove driven transforms and create/add blendshapes.

Note

The blendshape workflow is currently a work in progress and may change in the future.

5) Extensions and Settings View

Pose Wrangler now supports writing custom extensions for the tool that can be embedded into the UI here. Core Extensions are default extensions that ship with Pose Wrangler. Pose Exporter is an example of a custom extension used by the MetaHuman team. For more information on how these extensions work and how to create your own, please refer to the Extensions page.

You can also change the mirror mapping, which will allow you to specify a custom mapping if your skeleton does not match the default MetaHuman skeleton and the mirror solver/pose functionality is causing unexpected results.

7) Output Log

Displays debug, info, warning and error messages.
